Rabbit CCXCR1/XCR1 Polyclonal Antibody | anti-XCR1 antibody

Anti-CCXCR1/XCR1 Antibody Picoband

Gene Names
XCR1; GPR5; CCXCR1
Reactivity
Human, Mouse, Rat
Applications
ELISA, Immunohistochemistry, Western Blot
Purity
Immunogen affinity purified.
Synonyms
CCXCR1/XCR1, Antibody; Anti-CCXCR1/XCR1 Antibody Picoband; anti-XCR1 antibody
Ordering
Host
Rabbit
Reactivity
Human, Mouse, Rat
Clonality
Polyclonal
Isotype
Rabbit IgG
Purity/Purification
Immunogen affinity purified.
Form/Format
Lyophilized
Each vial contains 4 mg Trehalose, 0.9 mg NaCl, 0.2 mg Na2HPO4.
Concentration
Adding 0.2 ml of distilled water will yield a concentration of 500 ug/ml. (varies by lot)
Applicable Applications for anti-XCR1 antibody
ELISA, IHC (Immunohistochemistry), WB (Western Blot)
Reconstitution
Adding 0.2 ml of distilled water will yield a concentration of 500 ug/ml.
Immunogen
E Coli-derived human CCXCR1/XCR1 recombinant protein (Position: F246-N274).
Preparation and Storage
Store at -20 degree C for one year from date of receipt. After reconstitution, at 4 degree C for one month. It can also be aliquotted and stored frozen at -20 degree C for six months. Avoid repeated freezing and thawing.

IHC (Immunohistochemistry)

(Figure 4. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of rat thymus tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

product-image-AAA126363_IHC10.jpg IHC (Immunohistochemistry) (Figure 4. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of rat thymus tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

IHC (Immunohistochemisry)

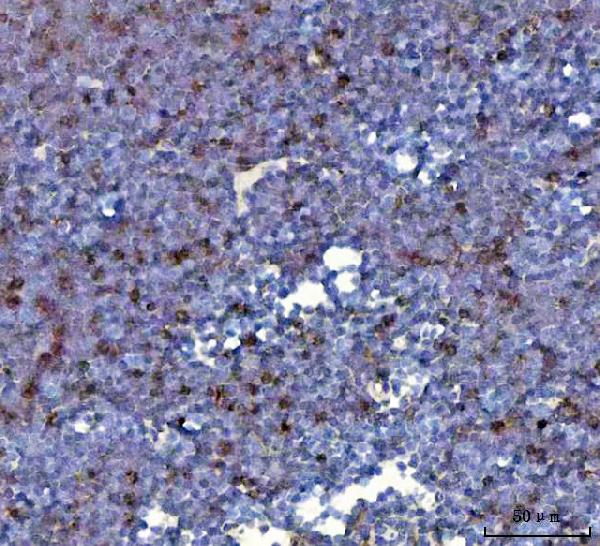

(Figure 3. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of mouse thymus tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

product-image-AAA126363_IHC11.jpg IHC (Immunohistochemisry) (Figure 3. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of mouse thymus tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

IHC (Immunohiostchemistry)

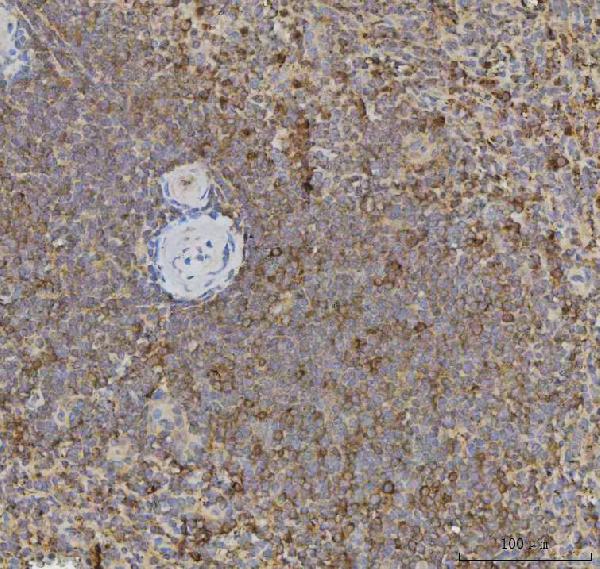

(Figure 2. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of human spleen tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

product-image-AAA126363_IHC13.jpg IHC (Immunohiostchemistry) (Figure 2. IHC analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).CCXCR1/XCR1 was detected in a paraffin-embedded section of human spleen tissue. Heat mediated antigen retrieval was performed in EDTA buffer (pH 8.0, epitope retrieval solution). The tissue section was blocked with 10% goat serum. The tissue section was then incubated with 2 ug/ml rabbit anti-CCXCR1/XCR1 Antibody (AAA126363) overnight at 4 degree C. Peroxidase Conjugated Goat Anti-rabbit IgG was used as secondary antibody and incubated for 30 minutes at 37 degree C. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit with DAB as the chromogen.)

WB (Western Blot)

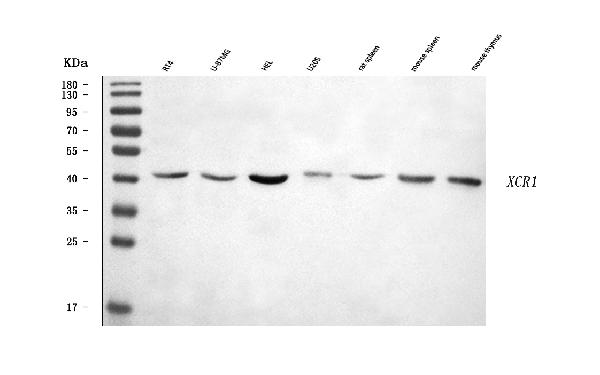

(Figure 1. Western blot analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.Lane 1: human RT4 whole cell lysates,Lane 2: human U-87MG whole cell lysates,Lane 3: human HEL whole cell lysates,Lane 4: human U20S whole cell lysates,Lane 5: rat spleen tissue lysates,Lane 6: mouse spleen tissue lysates,Lane 7: mouse thymus tissue lysates.After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CCXCR1/XCR1 antigen affinity purified polyclonal antibody (#AAA126363) at 0.5 ug/mL overnight at 4 degree C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for CCXCR1/XCR1 at approximately 42 kDa. The expected band size for CCXCR1/XCR1 is at 39 kDa.)

product-image-AAA126363_WB15.jpg WB (Western Blot) (Figure 1. Western blot analysis of CCXCR1/XCR1 using anti-CCXCR1/XCR1 antibody (AAA126363).Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel)/90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30 ug of sample under reducing conditions.Lane 1: human RT4 whole cell lysates,Lane 2: human U-87MG whole cell lysates,Lane 3: human HEL whole cell lysates,Lane 4: human U20S whole cell lysates,Lane 5: rat spleen tissue lysates,Lane 6: mouse spleen tissue lysates,Lane 7: mouse thymus tissue lysates.After electrophoresis, proteins were transferred to a nitrocellulose membrane at 150 mA for 50-90 minutes. Blocked the membrane with 5% non-fat milk/TBS for 1.5 hour at RT. The membrane was incubated with rabbit anti-CCXCR1/XCR1 antigen affinity purified polyclonal antibody (#AAA126363) at 0.5 ug/mL overnight at 4 degree C, then washed with TBS-0.1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1.5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for CCXCR1/XCR1 at approximately 42 kDa. The expected band size for CCXCR1/XCR1 is at 39 kDa.)
Related Product Information for anti-XCR1 antibody
The protein encoded by this gene is a chemokine receptor belonging to the G protein-coupled receptor superfamily. The family members are characterized by the presence of 7 transmembrane domains and numerous conserved amino acids. This receptor is most closely related to RBS11 and the MIP1-alpha/RANTES receptor. It transduces a signal by increasing the intracellular calcium ions level. The viral macrophage inflammatory protein-II is an antagonist of this receptor and blocks signaling. Several alternatively spliced transcript variants encoding the same protein have been found for this gene.
Product Categories/Family for anti-XCR1 antibody

NCBI and Uniprot Product Information

NCBI GI #
NCBI GeneID
NCBI Accession #
NCBI GenBank Nucleotide #
UniProt Accession #
Molecular Weight
38,508 Da
NCBI Official Full Name
chemokine XC receptor 1
NCBI Official Synonym Full Names
chemokine (C motif) receptor 1
NCBI Official Symbol
XCR1
NCBI Official Synonym Symbols
GPR5; CCXCR1
NCBI Protein Information
chemokine XC receptor 1; lymphotactin receptor; XC chemokine receptor 1; G protein-coupled receptor 5; G-protein coupled receptor 5; chemokine (C motif) XC receptor 1
UniProt Protein Name
Chemokine XC receptor 1
UniProt Gene Name
XCR1
UniProt Synonym Gene Names
CCXCR1; GPR5
UniProt Entry Name
XCR1_HUMAN

Similar Products

Product Notes

The XCR1 xcr1 (Catalog #AAA126363) is an Antibody produced from Rabbit and is intended for research purposes only. The product is available for immediate purchase. The Anti-CCXCR1/XCR1 Antibody Picoband reacts with Human, Mouse, Rat and may cross-react with other species as described in the data sheet. AAA Biotech's CCXCR1/XCR1 can be used in a range of immunoassay formats including, but not limited to, ELISA, IHC (Immunohistochemistry), WB (Western Blot). Researchers should empirically determine the suitability of the XCR1 xcr1 for an application not listed in the data sheet. Researchers commonly develop new applications and it is an integral, important part of the investigative research process. It is sometimes possible for the material contained within the vial of "CCXCR1/XCR1, Polyclonal Antibody" to become dispersed throughout the inside of the vial, particularly around the seal of said vial, during shipment and storage. We always suggest centrifuging these vials to consolidate all of the liquid away from the lid and to the bottom of the vial prior to opening. Please be advised that certain products may require dry ice for shipping and that, if this is the case, an additional dry ice fee may also be required.

Precautions

All products in the AAA Biotech catalog are strictly for research-use only, and are absolutely not suitable for use in any sort of medical, therapeutic, prophylactic, in-vivo, or diagnostic capacity. By purchasing a product from AAA Biotech, you are explicitly certifying that said products will be properly tested and used in line with industry standard. AAA Biotech and its authorized distribution partners reserve the right to refuse to fulfill any order if we have any indication that a purchaser may be intending to use a product outside of our accepted criteria.

Disclaimer

Though we do strive to guarantee the information represented in this datasheet, AAA Biotech cannot be held responsible for any oversights or imprecisions. AAA Biotech reserves the right to adjust any aspect of this datasheet at any time and without notice. It is the responsibility of the customer to inform AAA Biotech of any product performance issues observed or experienced within 30 days of receipt of said product. To see additional details on this or any of our other policies, please see our Terms & Conditions page.
