WB (Western Blot)
(Western blot analysis of extracts of mouse thymus tissue, using TMEM173/STING antibody.)
Rabbit TMEM173/STING Polyclonal Antibody | anti-TMEM173 antibody
TMEM173/STING Antibody
Gene Names
TMEM173; ERIS; MITA; MPYS; SAVI; NET23; STING; hMITA; hSTING; STING-beta
Reactivity
Human, Mouse, Rat
Applications
Immunohistochemistry, Western Blot
Purity
The antiserum was purified by peptide affinity chromatography using SulfoLink Coupling Resin.
Synonyms
TMEM173/STING, Antibody; TMEM173/STING Antibody; endoplasmic reticulum IFN stimulator; Endoplasmic reticulum interferon stimulator; ERIS; FLJ38577; hMITA; hSTING; Mediator of IRF3 activation; MITA; Mitochondrial mediator of IRF3 activation; MPYS; N terminal methionine proline tyrosine serine plasma membrane tetraspanner; NET23; Stimulator of interferon genes; Stimulator of interferon genes protein; STING; TM173_HUMAN; Tmem173; Transmembrane protein 173; anti-TMEM173 antibody
Host
Rabbit
Reactivity
Human, Mouse, Rat
Clonality
Polyclonal
Isotype
IgG
Specificity
TMEM173/STING antibody detects endogenous levels of TMEM173/STING.
Purity/Purification
The antiserum was purified by peptide affinity chromatography using SulfoLink Coupling Resin.
Form/Format
Liquid
Phosphate buffered saline, pH 7.4, 150mM NaCl, 0.02% sodium azide and 50% glycerol.
Phosphate buffered saline, pH 7.4, 150mM NaCl, 0.02% sodium azide and 50% glycerol.
Concentration
1mg/ml (varies by lot)
Sequence Length
379
Applicable Applications for anti-TMEM173 antibody
IHC (Immunohistochemistry), WB (Western Blot)
Immunogen
A synthesized peptide derived from human TMEM173/STING.
Subcellular Location
Endoplasmic Reticulum Membrane. Mitochondrion Outer Membrane. Cell Membrane. Cytoplasm > Perinuclear Region. In response to double-stranded DNA stimulation, relocalizes to perinuclear region, where the kinase TBK1 is recruited.
Tissue Specificity
Ubiquitously expressed. Expressed in skin endothelial cells, alveolar type 2 pneumocytes, bronchial epithelium and alveolar macrophages.
Predicted Cross Reactivity
Pig, Bovine, Horse, Sheep, Rabbit, Dog, Chicken
Similarity
Pig (100%), Bovine (100%), Horse (100%), Sheep (100%), Rabbit (100%), Dog (100%), Chicken (90%)
Conjugation
Unconjugated
Preparation and Storage
Store at -20 degree C. Stable for 12 months from date of receipt.
WB (Western Blot)
(Western blot analysis of extracts of mouse thymus tissue, using TMEM173/STING antibody.)
WB (Western Blot)
(Western blot analysis of extracts of mouse thymus tissue, using TMEM173/STING antibody.)
IHC (Immunohiostchemistry)
(AAA322916 at 1/100 staining Human breast cancer tissue by IHC-P. The sample was formaldehyde fixed and a heat mediated antigen retrieval step in citrate buffer was performed. The sample was then blocked and incubated with the antibody for 1.5 hours at 22 degree C. An HRP conjugated goat anti-rabbit antibody was used as the secondary.)
IHC (Immunohiostchemistry)
(AAA322916 at 1/100 staining Human breast cancer tissue by IHC-P. The sample was formaldehyde fixed and a heat mediated antigen retrieval step in citrate buffer was performed. The sample was then blocked and incubated with the antibody for 1.5 hours at 22 degree C. An HRP conjugated goat anti-rabbit antibody was used as the secondary.)

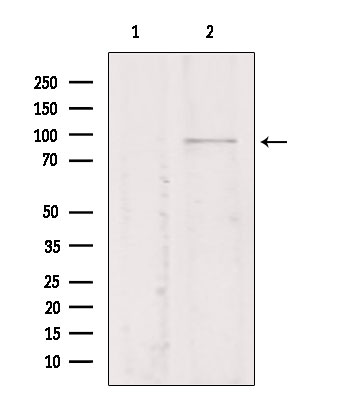

WB (Western Blot)
(Western blot analysis of extracts from Mouse myeloma, using TMEM173/STING antibody. Lane 1 was treated with the blocking peptide.)
WB (Western Blot)
(Western blot analysis of extracts from Mouse myeloma, using TMEM173/STING antibody. Lane 1 was treated with the blocking peptide.)
Related Product Information for anti-TMEM173 antibody
Function: Facilitator of innate immune signaling that acts as a sensor of cytosolic DNA from bacteria and viruses and promotes the production of type I interferon (IFN-alpha and IFN-beta). Innate immune response is triggered in response to non-CpG double-stranded DNA from viruses and bacteria delivered to the cytoplasm. Acts by recognizing and binding cyclic di-GMP (c-di-GMP), a second messenger produced by bacteria, and cyclic GMP-AMP (cGAMP), a messenger produced in response to DNA virus in the cytosol: upon binding of c-di-GMP or cGAMP, autoinhibition is alleviated and TMEM173/STING is able to activate both NF-kappa-B and IRF3 transcription pathways to induce expression of type I interferon and exert a potent anti-viral state. May be involved in translocon function, the translocon possibly being able to influence the induction of type I interferons. May be involved in transduction of apoptotic signals via its association with the major histocompatibility complex class II (MHC-II). Mediates death signaling via activation of the extracellular signal-regulated kinase (ERK) pathway. Essential for the induction of IFN-beta in response to human herpes simplex virus 1 (HHV-1) infection. Exhibits 2', 3' phosphodiester linkage-specific ligand recognition. Can bind both 2'-3' linked cGAMP and 3'-3' linked cGAMP but is preferentially activated by 2'-3' linked cGAMP (PubMed:26300263).
Subunit Structure: Associates with the MHC-II complex (By similarity). Homodimer; 'Lys-63'-linked ubiquitination at Lys-150 is required for homodimerization. Interacts with DDX58/RIG-I, MAVS and SSR2. Interacts with RNF5 and TRIM56. Interacts with TBK1; when homodimer, leading to subsequent production of IFN-beta. Interacts with IFIT1 and IFIT2. Interacts with TRIM29; this interaction induces TMEM173/STING ubiquitination and subsequent degradation (PubMed:29038422).
Post-translational Modifications: Phosphorylated on tyrosine residues upon MHC-II aggregation (By similarity). Phosphorylated on Ser-358 by TBK1, leading to activation and production of IFN-beta. Ubiquitinated (PubMed:19285439, PubMed:19433799, PubMed:21074459, PubMed:25254379). 'Lys-63'-linked ubiquitination mediated by TRIM56 at Lys-150 promotes homodimerization and recruitment of the antiviral kinase TBK1 and subsequent production of IFN-beta (PubMed:21074459). 'Lys-48'-linked polyubiquitination at Lys-150 occurring after viral infection is mediated by RNF5 and leads to proteasomal degradation (PubMed:19285439). 'Lys-11'-linked polyubiquitination at Lys-150 by RNF26 leads to stabilize TMEM173/STING: it protects TMEM173/STING from RNF5-mediated 'Lys-48'-linked polyubiquitination (PubMed:25254379).
Similarity: The c-di-GMP-binding domain (CBD) forms a homodimer via hydrophobic interactions and binds both the cyclic diguanylate monophosphate (c-di-GMP) and the cyclic GMP-AMP (cGAMP) messengers. In absence of c-di-GMP or cGAMP, the protein is autoinhibited by an intramolecular interaction between the CBD and the C-terminal tail (CTT). Binding of c-di-GMP or cGAMP to the CBD releases the autoinhibition by displacing the CTT, leading to activate both NF-kappa-B and IRF3 transcription pathways to induce expression of type I interferon. The N-terminal part of the CBD region was initially though to contain a fifth transmembrane region (TM5) but is part of the folded, soluble CBD (PubMed:22579474, PubMed:22705373, PubMed:22728658, PubMed:22728660 and PubMed:22728659). Belongs to the TMEM173 family.
Subunit Structure: Associates with the MHC-II complex (By similarity). Homodimer; 'Lys-63'-linked ubiquitination at Lys-150 is required for homodimerization. Interacts with DDX58/RIG-I, MAVS and SSR2. Interacts with RNF5 and TRIM56. Interacts with TBK1; when homodimer, leading to subsequent production of IFN-beta. Interacts with IFIT1 and IFIT2. Interacts with TRIM29; this interaction induces TMEM173/STING ubiquitination and subsequent degradation (PubMed:29038422).
Post-translational Modifications: Phosphorylated on tyrosine residues upon MHC-II aggregation (By similarity). Phosphorylated on Ser-358 by TBK1, leading to activation and production of IFN-beta. Ubiquitinated (PubMed:19285439, PubMed:19433799, PubMed:21074459, PubMed:25254379). 'Lys-63'-linked ubiquitination mediated by TRIM56 at Lys-150 promotes homodimerization and recruitment of the antiviral kinase TBK1 and subsequent production of IFN-beta (PubMed:21074459). 'Lys-48'-linked polyubiquitination at Lys-150 occurring after viral infection is mediated by RNF5 and leads to proteasomal degradation (PubMed:19285439). 'Lys-11'-linked polyubiquitination at Lys-150 by RNF26 leads to stabilize TMEM173/STING: it protects TMEM173/STING from RNF5-mediated 'Lys-48'-linked polyubiquitination (PubMed:25254379).
Similarity: The c-di-GMP-binding domain (CBD) forms a homodimer via hydrophobic interactions and binds both the cyclic diguanylate monophosphate (c-di-GMP) and the cyclic GMP-AMP (cGAMP) messengers. In absence of c-di-GMP or cGAMP, the protein is autoinhibited by an intramolecular interaction between the CBD and the C-terminal tail (CTT). Binding of c-di-GMP or cGAMP to the CBD releases the autoinhibition by displacing the CTT, leading to activate both NF-kappa-B and IRF3 transcription pathways to induce expression of type I interferon. The N-terminal part of the CBD region was initially though to contain a fifth transmembrane region (TM5) but is part of the folded, soluble CBD (PubMed:22579474, PubMed:22705373, PubMed:22728658, PubMed:22728660 and PubMed:22728659). Belongs to the TMEM173 family.
NCBI and Uniprot Product Information
NCBI GI #
NCBI GeneID
NCBI Accession #
NCBI GenBank Nucleotide #
Molecular Weight
Observed: 35-40 kDa; 80 kDa
Predicted: 43 kDa
Predicted: 43 kDa
NCBI Official Full Name
stimulator of interferon genes protein isoform 1
NCBI Official Synonym Full Names
transmembrane protein 173
NCBI Official Symbol
TMEM173
NCBI Official Synonym Symbols
ERIS; MITA; MPYS; SAVI; NET23; STING; hMITA; hSTING; STING-beta
NCBI Protein Information
stimulator of interferon genes protein
UniProt Protein Name
Stimulator of interferon genes protein
UniProt Gene Name
TMEM173
UniProt Synonym Gene Names
ERIS; MITA2 PublicationsManual assertion based on opinion iniRef.1; hSTING2 PublicationsManual assertion based on opinion iniRef.5; ERIS; hMITA2 PublicationsManual assertion based on opinion iniRef.1
Similar Products
Product Notes
The TMEM173 tmem173 (Catalog #AAA322916) is an Antibody produced from Rabbit and is intended for research purposes only. The product is available for immediate purchase. The TMEM173/STING Antibody reacts with Human, Mouse, Rat and may cross-react with other species as described in the data sheet. AAA Biotech's TMEM173/STING can be used in a range of immunoassay formats including, but not limited to, IHC (Immunohistochemistry), WB (Western Blot). Researchers should empirically determine the suitability of the TMEM173 tmem173 for an application not listed in the data sheet. Researchers commonly develop new applications and it is an integral, important part of the investigative research process. It is sometimes possible for the material contained within the vial of "TMEM173/STING, Polyclonal Antibody" to become dispersed throughout the inside of the vial, particularly around the seal of said vial, during shipment and storage. We always suggest centrifuging these vials to consolidate all of the liquid away from the lid and to the bottom of the vial prior to opening. Please be advised that certain products may require dry ice for shipping and that, if this is the case, an additional dry ice fee may also be required.Precautions
