FCM/FACS (Flow Cytometry)
(Figure 2. Flow Cytometry analysis of PC-3 cells using anti-TRIF/TICAM1 antibody (AAA125627).Overlay histogram showing PC-3 cells stained with AAA125627 (Blue line). The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TRIF/TICAM1 Antibody (AAA125627, 1μg/1x106 cells) for 30 min at 20 degree C. DyLight®488 conjugated goat anti-rabbit IgG (5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20 degree C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.)
Rabbit anti-Human TRIF/TICAM1 Polyclonal Antibody | anti-TICAM1 antibody
Anti-TRIF/TICAM1 Antibody
Gene Names
TICAM1; TRIF; IIAE6; MyD88-3; PRVTIRB; TICAM-1
Reactivity
Human
Applications
ELISA, Flow Cytometry, Functional Assay, Western Blot
Purity
Immunogen affinity purified.
Synonyms
TRIF/TICAM1, Antibody; Anti-TRIF/TICAM1 Antibody; TICAM1; PRVTIRB; TRIF; TIR domain-containing adapter molecule 1; TICAM-1; Proline-rich, vinculin and TIR domain-containing protein B; Putative NF-kappa-B-activating protein 502H; Toll-interleukin-1 receptor domain-containing adapter protein inducing interferon beta; MyD88-3; TIR domain-containing adapter protein inducing IFN-beta; toll like receptor adaptor molecule 1; anti-TICAM1 antibody
Host
Rabbit
Reactivity
Human
Clonality
Polyclonal
Isotype
Rabbit IgG
Specificity
Rabbit IgG polyclonal antibody for TRIF/TICAM detection.
Purity/Purification
Immunogen affinity purified.
Form/Format
Lyophilized. Each vial contains 4mg Trehalose, 0.9mg NaCl and 0.2mg Na2HPO4.
Applicable Applications for anti-TICAM1 antibody
ELISA (Direct ELISA), FCM/FACS (Flow Cytometry), WB (Western Blot)
Immunogen
E Coli-derived human TRIF/TICAM1 recombinant protein (Position: S385-H448).
Reconstitution
Add 0.2ml of distilled water will yield a concentration of 500ug/ml.
Recommended Detection Systems
Recommended Detection Systems
Preparation and Storage
Store at -20 degree C for one year. After reconstitution, at 4 degree C for one month. It can also be aliquotted and stored frozen at -20 degree C for a longer time. Avoid repeated freezing and thawing.
FCM/FACS (Flow Cytometry)
(Figure 2. Flow Cytometry analysis of PC-3 cells using anti-TRIF/TICAM1 antibody (AAA125627).Overlay histogram showing PC-3 cells stained with AAA125627 (Blue line). The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TRIF/TICAM1 Antibody (AAA125627, 1μg/1x106 cells) for 30 min at 20 degree C. DyLight®488 conjugated goat anti-rabbit IgG (5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20 degree C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.)
FCM/FACS (Flow Cytometry)
(Figure 2. Flow Cytometry analysis of PC-3 cells using anti-TRIF/TICAM1 antibody (AAA125627).Overlay histogram showing PC-3 cells stained with AAA125627 (Blue line). The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-TRIF/TICAM1 Antibody (AAA125627, 1μg/1x106 cells) for 30 min at 20 degree C. DyLight®488 conjugated goat anti-rabbit IgG (5-10μg/1x106 cells) was used as secondary antibody for 30 minutes at 20 degree C. Isotype control antibody (Green line) was rabbit IgG (1μg/1x106) used under the same conditions. Unlabelled sample (Red line) was also used as a control.)
WB (Western Blot)

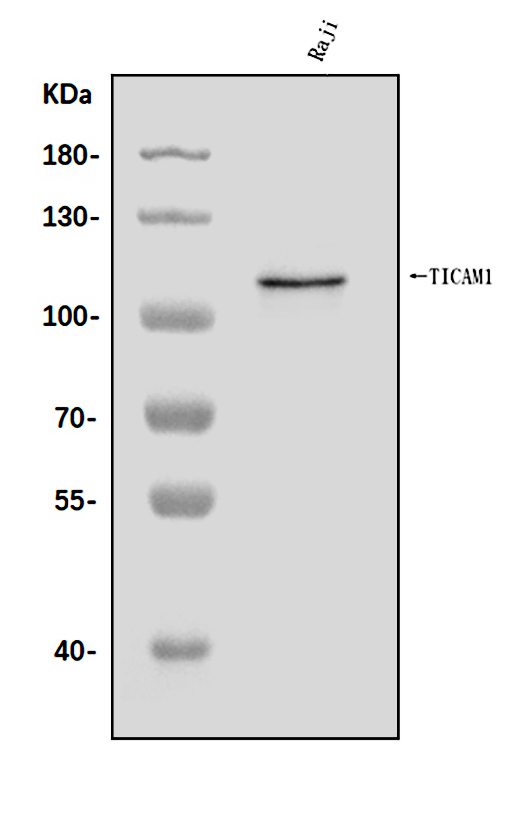

(Figure 1. Western blot analysis of TRIF/TICAM1 using anti-TRIF/TICAM1 antibody (AAA125627).Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30ug of sample under reducing conditions.Lane 1: human Raji whole cell lysates.After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1. 5 hour at RT. The membrane was incubated with rabbit anti-TRIF/TICAM1 antigen affinity purified polyclonal antibody (Catalog # AAA125627) at 0. 5 μg/mL overnight at 4 degree C, then washed with TBS-0. 1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1. 5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TRIF/TICAM1 at approximately 110KD. The expected band size for TRIF/TICAM1 is at 76KD.)
WB (Western Blot)
(Figure 1. Western blot analysis of TRIF/TICAM1 using anti-TRIF/TICAM1 antibody (AAA125627).Electrophoresis was performed on a 5-20% SDS-PAGE gel at 70V (Stacking gel) / 90V (Resolving gel) for 2-3 hours. The sample well of each lane was loaded with 30ug of sample under reducing conditions.Lane 1: human Raji whole cell lysates.After Electrophoresis, proteins were transferred to a Nitrocellulose membrane at 150mA for 50-90 minutes. Blocked the membrane with 5% Non-fat Milk/ TBS for 1. 5 hour at RT. The membrane was incubated with rabbit anti-TRIF/TICAM1 antigen affinity purified polyclonal antibody (Catalog # AAA125627) at 0. 5 μg/mL overnight at 4 degree C, then washed with TBS-0. 1%Tween 3 times with 5 minutes each and probed with a goat anti-rabbit IgG-HRP secondary antibody at a dilution of 1:5000 for 1. 5 hour at RT. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit with Tanon 5200 system. A specific band was detected for TRIF/TICAM1 at approximately 110KD. The expected band size for TRIF/TICAM1 is at 76KD.)
Related Product Information for anti-TICAM1 antibody
TICAM1 (TIR DOMAIN-CONTAINING ADAPTOR MOLECULE 1), also known as TRIF, is an adapter in responding to activation of toll-like receptors (TLRs). It mediates the rather delayed cascade of two TLR-associated signaling cascades, where the other one is dependent upon a MyD88 adapter. By genomic sequence analysis, Oshiumi et al. (2003) mapped the TICAM1 gene to chromosome 19p13. 3. By coimmunoprecipitation analysis, Oshiumi et al. (2003) showed that TICAM1 interacts specifically with TLR3, but not with other TLRs. Functional analysis showed that the association of TLR3 and TICAM1 mediates dsRNA activation of IFNB, through NFKB, AP1, or IRF3. TICAM1 activation of NFKB was found to occur predominantly through IRAK1 rather than IRAK2. Small interfering (si)RNA blockage of TICAM1, just upstream of the TIR domain, reduced IFNB production in response to dsRNA.
References
1. Carty, M., Goodbody, R., Schroder, M., Stack, J., Moynagh, P. N., Bowie, A. G. The human adaptor SARM negatively regulates adaptor protein TRIF-dependent Toll-like receptor signaling. Nature Immun. 7: 1074-1081, 2006.
2. Oshiumi, H., Matsumoto, M., Funami, K., Akazawa, T., Seya, T. TICAM-I, an adaptor molecule that participates in Toll-like receptor 3-mediated interferon-beta induction. Nature Immun. 4: 161-167, 2003.
3. Yamamoto, M., Sato, S., Mori, K., Hoshino, K., Takeuchi, O., Takeda, K., Akira, S. Cutting edge: a novel Toll/IL-1 receptor domain-containing adapter that preferentially activates the IFN-beta promoter in the Toll-like receptor signaling. J. Immun. 169: 6668-6672, 2002.
2. Oshiumi, H., Matsumoto, M., Funami, K., Akazawa, T., Seya, T. TICAM-I, an adaptor molecule that participates in Toll-like receptor 3-mediated interferon-beta induction. Nature Immun. 4: 161-167, 2003.
3. Yamamoto, M., Sato, S., Mori, K., Hoshino, K., Takeuchi, O., Takeda, K., Akira, S. Cutting edge: a novel Toll/IL-1 receptor domain-containing adapter that preferentially activates the IFN-beta promoter in the Toll-like receptor signaling. J. Immun. 169: 6668-6672, 2002.
NCBI and Uniprot Product Information
NCBI GI #
NCBI GeneID
Molecular Weight
76,422 Da
NCBI Official Full Name
TIR domain-containing adapter molecule 1
NCBI Official Synonym Full Names
toll-like receptor adaptor molecule 1
NCBI Official Symbol
TICAM1
NCBI Official Synonym Symbols
TRIF; IIAE6; MyD88-3; PRVTIRB; TICAM-1
NCBI Protein Information
TIR domain-containing adapter molecule 1; putative NF-kappa-B-activating protein 502H; TIR domain containing adaptor inducing interferon-beta; TIR domain-containing adapter protein inducing IFN-beta; proline-rich, vinculin and TIR domain-containing protei
UniProt Protein Name
TIR domain-containing adapter molecule 1
UniProt Gene Name
TICAM1
UniProt Synonym Gene Names
PRVTIRB; TRIF; TICAM-1; MyD88-3
UniProt Entry Name
TCAM1_HUMAN
Similar Products
Product Notes
The TICAM1 ticam1 (Catalog #AAA125627) is an Antibody produced from Rabbit and is intended for research purposes only. The product is available for immediate purchase. The Anti-TRIF/TICAM1 Antibody reacts with Human and may cross-react with other species as described in the data sheet. AAA Biotech's TRIF/TICAM1 can be used in a range of immunoassay formats including, but not limited to, ELISA (Direct ELISA), FCM/FACS (Flow Cytometry), WB (Western Blot). Researchers should empirically determine the suitability of the TICAM1 ticam1 for an application not listed in the data sheet. Researchers commonly develop new applications and it is an integral, important part of the investigative research process. It is sometimes possible for the material contained within the vial of "TRIF/TICAM1, Polyclonal Antibody" to become dispersed throughout the inside of the vial, particularly around the seal of said vial, during shipment and storage. We always suggest centrifuging these vials to consolidate all of the liquid away from the lid and to the bottom of the vial prior to opening. Please be advised that certain products may require dry ice for shipping and that, if this is the case, an additional dry ice fee may also be required.Precautions
